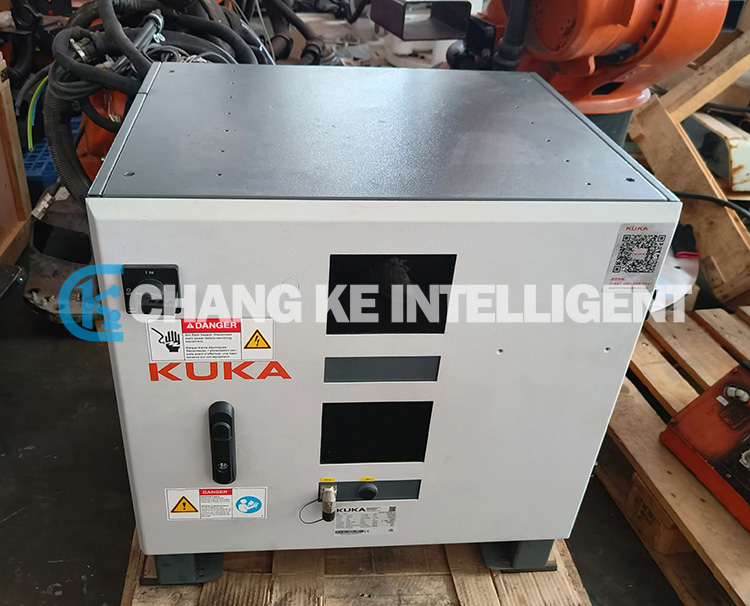

KUKA KUKA Robot Control Cabinet KR C5 dualcab AC Parameters:

Operating System: KSS 8.7

Internal storage: 60 GB (SSD M.2)

CPU architecture: Intel X86 (main CPU)+ARM (security features)

IP rating: IP54

Supports up to 6 external axes

Power supply voltage: 3~380... 480 V

Power frequency: 50/60Hz

Full load current: 20A

Power fuse: 32A

Compatible power supply: AC 3 x 380 V -3 x 480 V

Power supply: 380-480 VAC three-phase (without transformer), 380-575VAC three-phase (with transformer)

Operating temperature range: 0-45 ℃

Size: 207 * 392 * 500 mm

Body weight: 133 kg

Interface and signal of KUKA robot control cabinet KR C5 dualcab AC:

Interface for input/output signals;

16 input/output signal 24V;

Safety signals for modules;

Safety signals used for SafeOperation technology;

PROFInet / PROFIsafe；

EthernetIP/ CIP Safety；

Expansion module EtherCAT slave/FSoe;

Expansion module PROFIbus master/slave;

Expansion module DeviceNet master/slave;

Integrated Ethernet gateway.

Upgrading the KUKA robot control cabinet to KR C5 dualcab AC can provide the following advantages:

Upgrading the components and energy efficiency architecture enables KR C5 to maintain lower energy consumption during operation, improving cost-effectiveness;

The KR C5 control cabinet is easy to integrate and can be quickly controlled through brief training.
